Arduino UNO

Arduino UNO

SKU: A049 | Weight: 0.1 kg.

 499.00

In stock

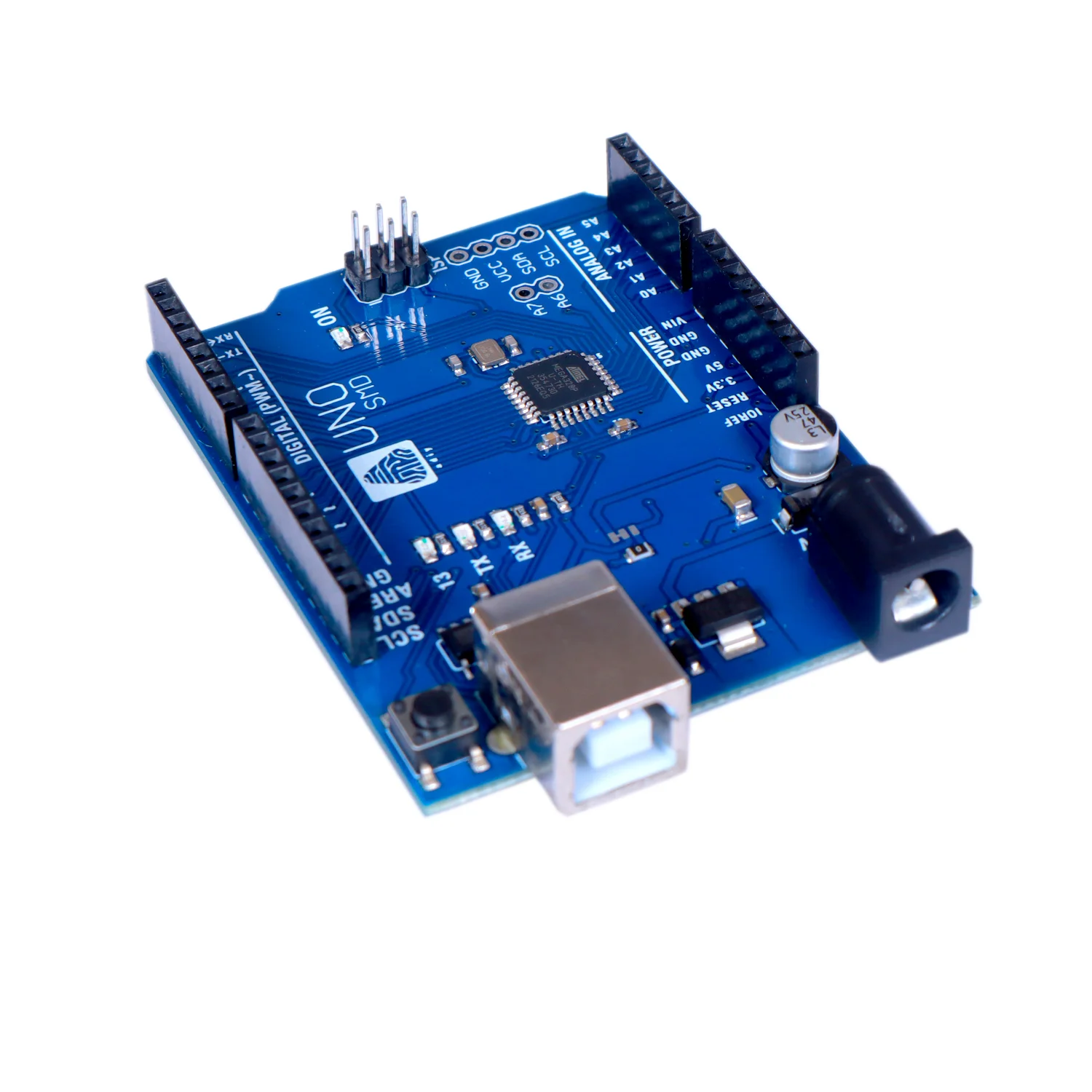

Arduino Uno is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs ,6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Features:

  • Microcontroller: ATmega328P
  • Operating Voltage: 3.3/5V
  • Input Voltage: 1.8-5V
  • DIO Pins: 14 (of which 6 provide 'PWM' output)
  • AIO Pins: 6
  • DC Current per I/O Pin: 20 mA (40mA peak)
  • DC Current for 3.3V Pin: 50 mA
  • Maximum Board Load Current: 200mA
  • Flash Memory: 32KB (ATMega328P) of which 0.5 KB used by bootloader
  • SRAM: 2KB (ATMega328P)
  • EEPROM: 1KB (ATMega328P)
  • Clock Speed: 16MHz
  • System Bus: 8-bit
  • USART: 1
  • Serial TTL, SPI, I2C support
  • Timers - 3
  • External Interrupts, Supply & Clock support
